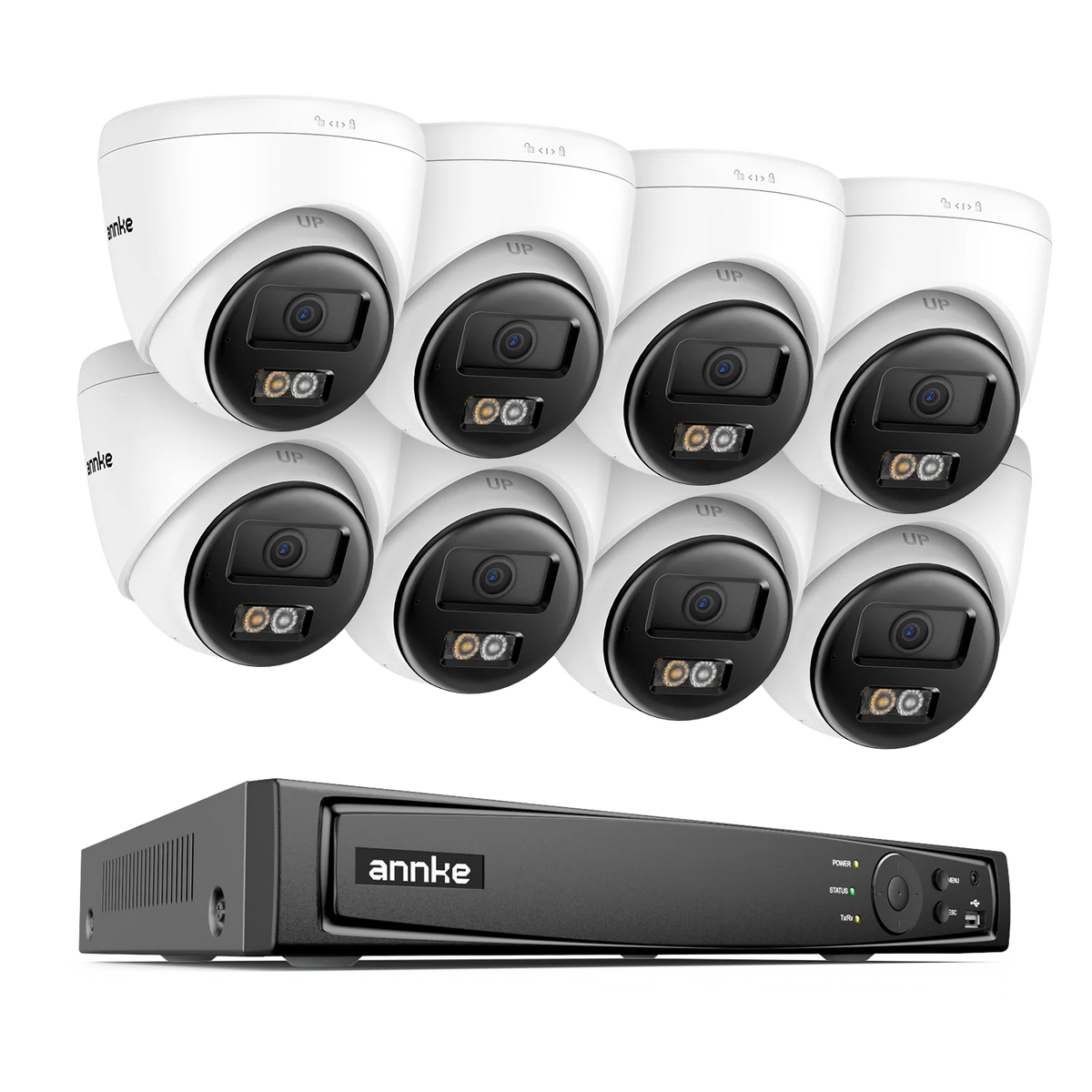

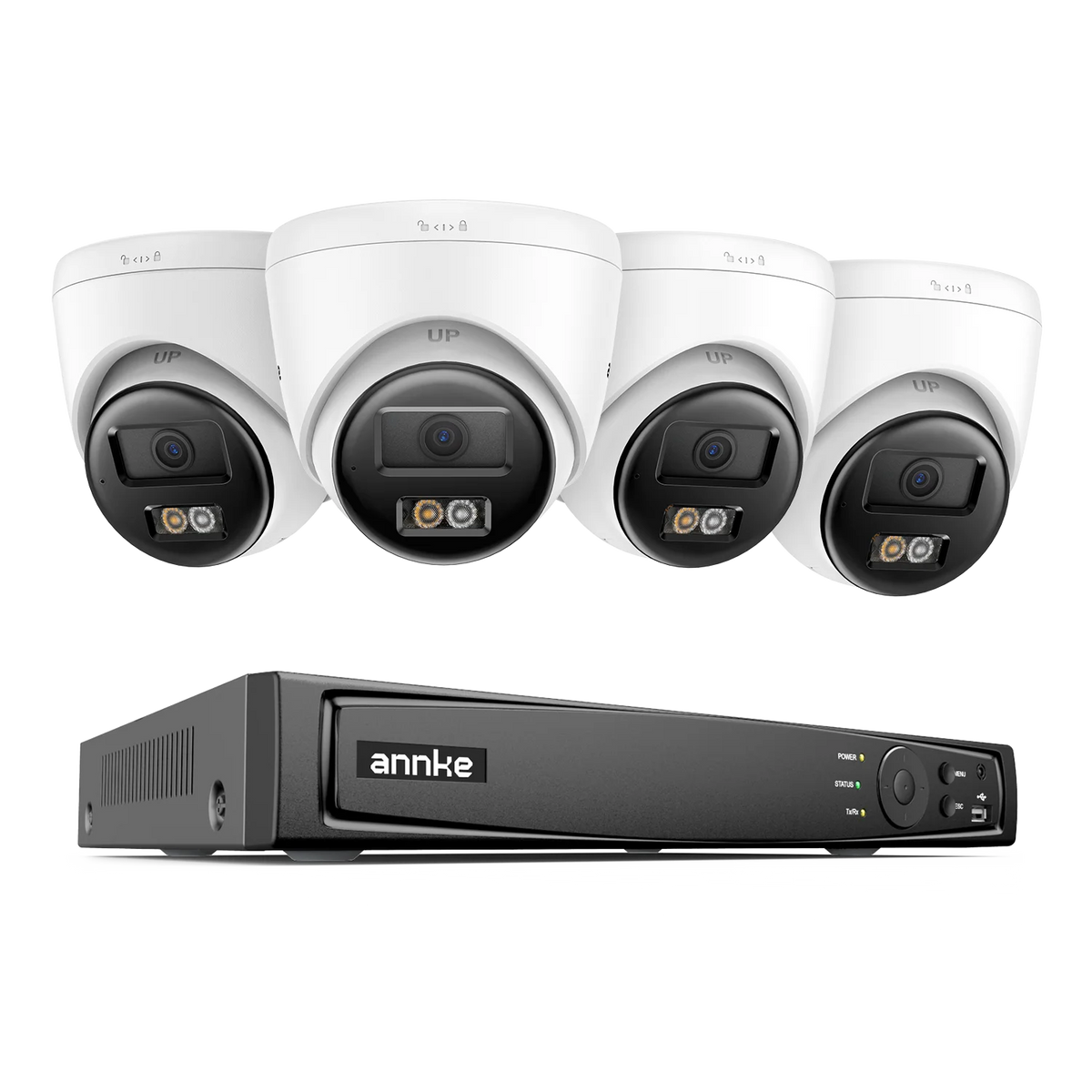

Annke 3K PoE Night Vision Outdoor Security Camera System
Annke 3K PoE Night Vision Outdoor Security Camera System
Couldn't load pickup availability
Monitor your entire perimeter day and night with 3K resolution video, smart dual-light illumination, and precise human and vehicle detection.
- You frame every approach with zero blind spots thanks to the 2.8 mm lens and 123-degree diagonal field of view.
- You capture full-color nighttime footage and deter intruders instantly when the camera switches to its visible white light and audio alarm.
- You minimize false notifications because the built-in algorithm filters out animals and environmental triggers, sending only verified human and vehicle alerts to your phone.
- You maximize your installed hard drive capacity as the 8-channel PoE NVR compresses multi-stream footage with efficient H.265+ technology.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
Model Number |
I51HJ |
|
IP Camera | ||
Camera |
Image Sensor |
1/2.8" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728, 2560 X 1440), 25 fps(1920 X 1080) |
|
Substream |
50 Hz: 20 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
256 Kbps - 8 Mbps |
|
Audio Compression |
G.711ulaw/AAC |
|
Audio Input |
Built-in microphone, record with audio |
|
Audio Output |
Built-in Speaker, max. sound pressure level: 10 cm: 95 dB |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.01 Lux, B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° |
|
Supplement Light Type |
Smart Dual-Light, IR Light, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 30 m |
|
Motion Detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Flashing Light |
White Light |
|
Flashing Light Alarm |
High/Medium/Low Frequency/Normally On |
|
Audio Alarm |
Warning Sound/Prompt/Custom Audio |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, DDNS, SNMP |
|
API |
Open Network Video Interface Version 19.12 |
|
Privacy Mask |
1 programmable polygon privacy mask |
|
General Function |
Mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 7.5 W; PoE (802.3af), max. 9 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
Approx. 350 g (0.7 lb.) |
|
